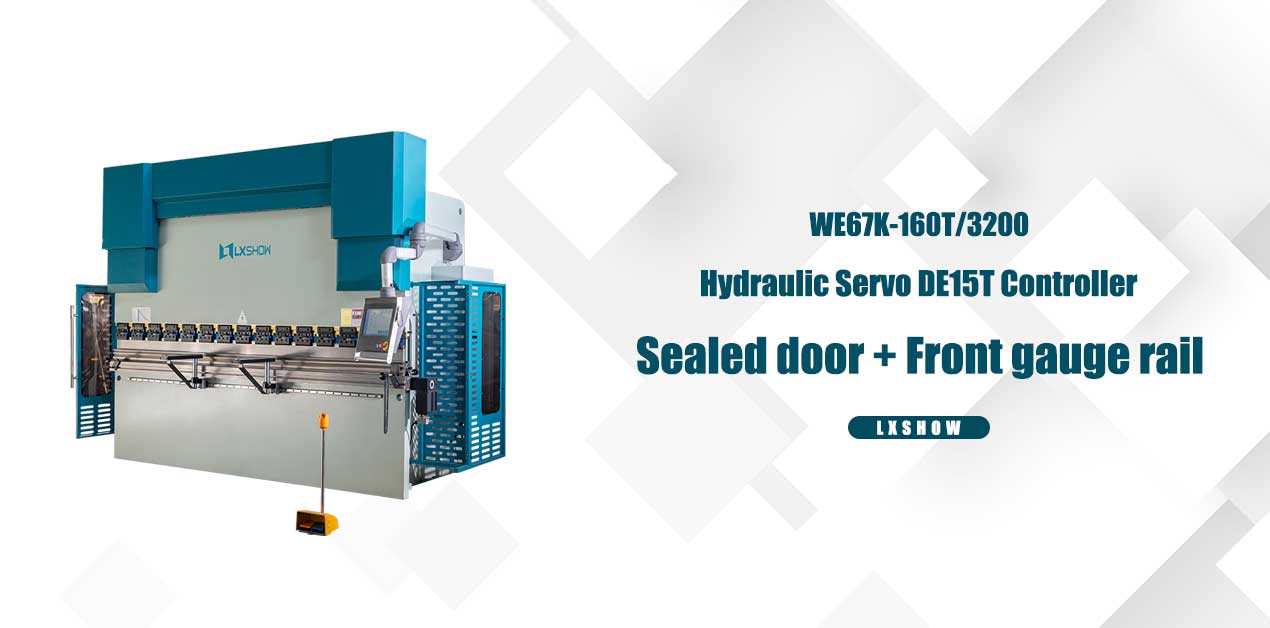

WE67K-160T/3200 Good Performance Sheet Metal Electrical Hydraulic Press Brakes with DE15T Controller
Inquire Now
Next Product
Share
MACHINE FEATURES
Main Technical Parameters
Machine model
WE67K-160T/3200
Nominal Pressure
0 kN
Bending length
3200mm
Distance between columns
2560mm
Throat Depth
320 mm
MAX Pressure of system
22Mpa
Slide running condition
Moving Journey/stroke
200mm
fast down speed
180mm/s
return speed
110mm/s
working speed
10mm/s
Slide running precision
Position accuracy
±0.03mm
Repeat Position accuracy
±0.02mm
Main motor power
Power
11 KW
rotate speed
1440r/min
Operate system
Model
DE53T System
Oil Pump
Model
USA sunny
Bending precision
angle
±30'
straightness
±0.7mm/m
Voltage
220/380/420/660 V
Tech Info
1)Tonnage=8*1.68*stainless Steel thickness*plate Width
2)Tonnage=8*carbon steel plate thickness*plate width
Main Technical Parameters
Machine model
WE67K-70T/2000
Nominal Pressure
700 kN
Bending length
2000mm
Distance between columns
1490 mm
Throat Depth
230 mm
MAX Pressure of system
22Mpa
Slide running condition
Moving Journey/stroke
200mm
fast down speed
180mm/s
return speed
110mm/s
working speed
10mm/s
Slide running precision
Position accuracy
±0.03mm
Repeat Position accuracy
±0.02mm
Main motor power
Power
5.5 KW
rotate speed
1440r/min
Operate system
Model
DE15 System
Oil Pump
Model
USA sunny
Bending precision
angle
±30'
straightness
±0.7mm/m
Voltage
220/380/420/660 V
Tech Info
1)Tonnage=8*1.68*stainless Steel thickness*plate Width
2)Tonnage=8*carbon steel plate thickness*plate width
