To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

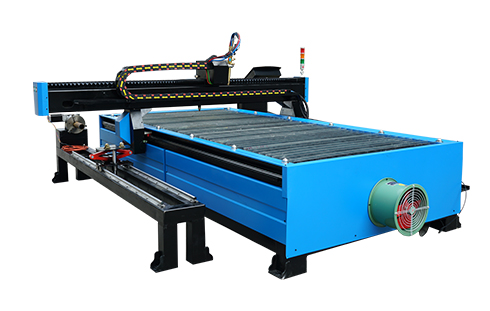

1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail
that make the machine driving smoothly with high-precision.
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can
reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming
the advertising word processing pipeline.
Completely solve the traditional manual processing methods. Improve the efficiency of several times.
4). Cutting mouth is small, tidy,and avoid a second dressing processing.
5). It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
6). High cutting speed, high precision, and low cost.
7). The numerical control system disposes high, the automatic striking arc, the performance is stable.
8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,
also can change software to read AUTOCAD softwares produce DXF form documents.

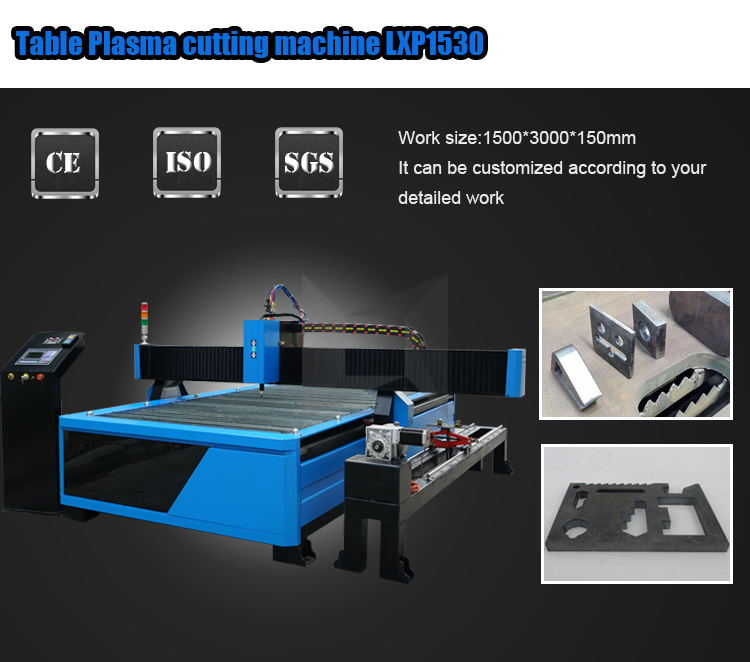

|No.||Description||LXP1530(Optional:LXP1015/LXP1212/LXP1325/LXP1540/LXP1550/LXP1560/LXP2030/LXP2040/LXP2050/LXP2060,other size can be customized)|
/1500*6000/2000*5000/2000*6000mm,other size can be customized)
|2||Z Axis Clearance||150mm(200 And Higher Is Optional)|
|3||Table Type||Knife table (Teeth table And Water table can be optional)|
|4||Transmission System||Rack Pinion And Hiwin Linear Rails For X/Y|
|5||Driving System||Stepper Motor And Drivers(Servp motor is optional)|
|6||Max. Cutting Speed||12000mm/Min(different configuration and different material and thickness speed is different)|
|7||Max. Travelling Speed||30000mm/Min(different configuration speed is different)|
|8||Working Voltage||380V/3ph(220V/3ph is optional)|
|9||Plasma Generator||Huayuan China and USA power as your requirements|
|10||Arc Mode||Non-Contact Arc, Arc Pressure Adjuster|
|11||Output Current||63/100/120A/160A/200A China(45/65/85/105/125/200A USA)|
|12||Max. Cutting Thickness||6/15/18/20/30mm|
|13||Operating System||Starfire Controller/Start Controller/JiaoDa fangling controller|
|14||Working Material||Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plateand almost all of the metal|
|15||Rotary size||Diameter 200-600mmLength:3m or customized|
