Applicable Materials:
To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.
Applicable industry:
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

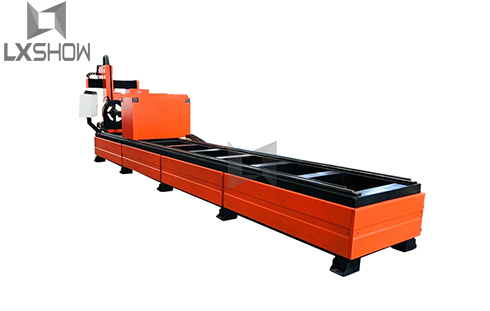

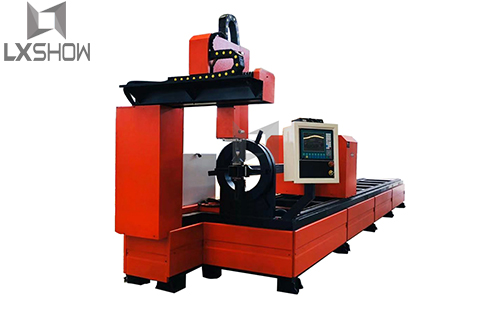

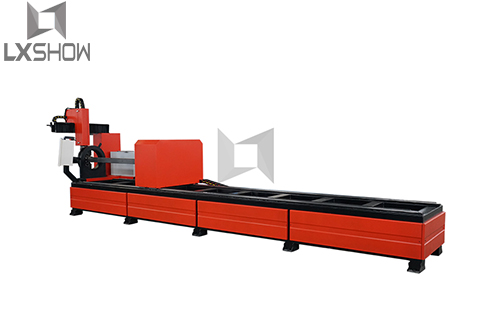

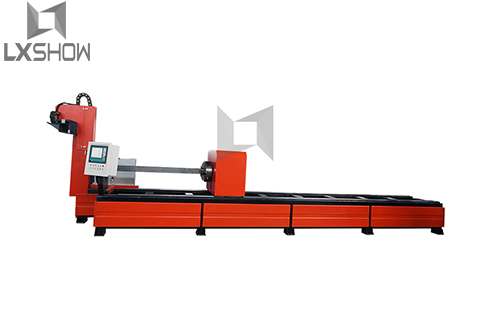

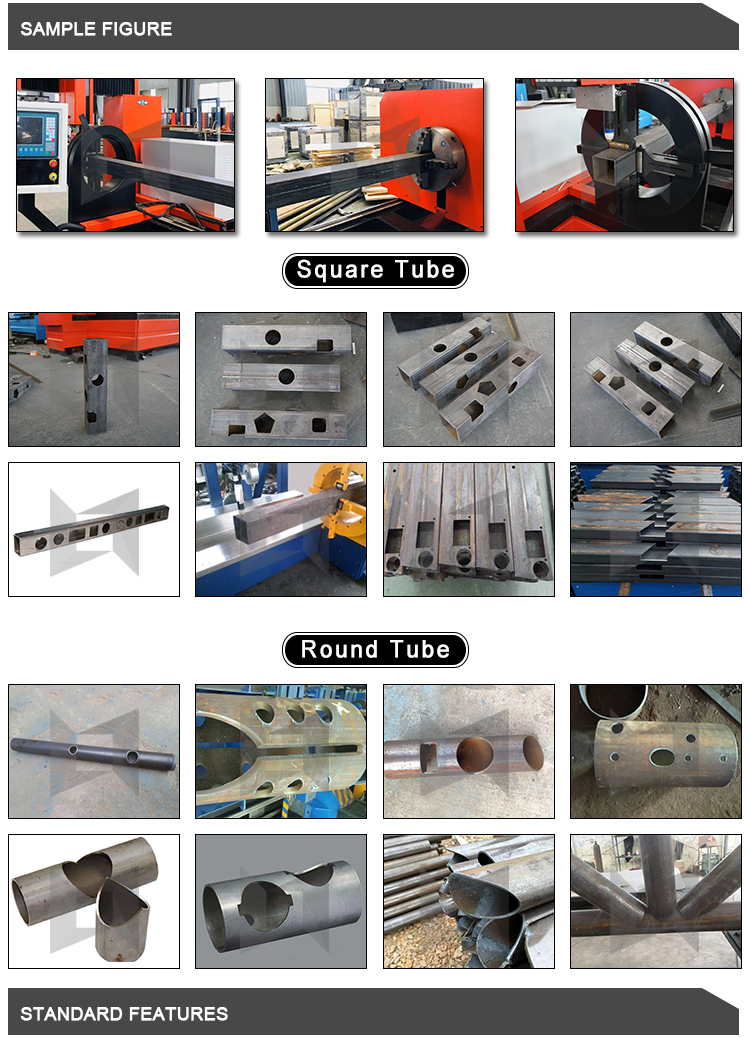

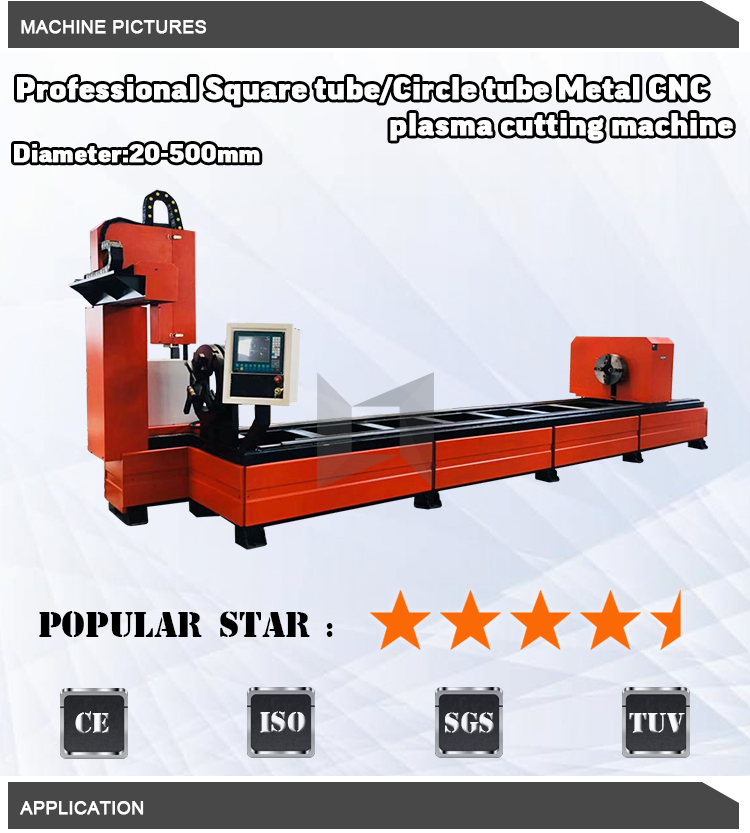

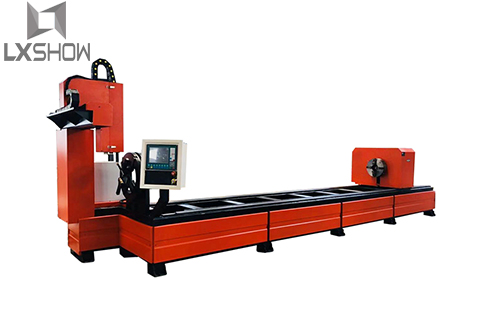

1. This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.
2. The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.
3. LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.
4. Driving system is servo or stepper drive, you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time
5. Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.
| No. | Description | LXP6020 (Length 3000 is Optional. Diameter 300mm is optional) |
| 1 | Working Size | 200(Diameter)*6000mm(Length) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Chunk rotary |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Servo motor( YASKAWA/PANASONIC ,also according to your needs and budget.) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Jiaoda fangling |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm(This is approximate,It also according to power and kinds metal) |

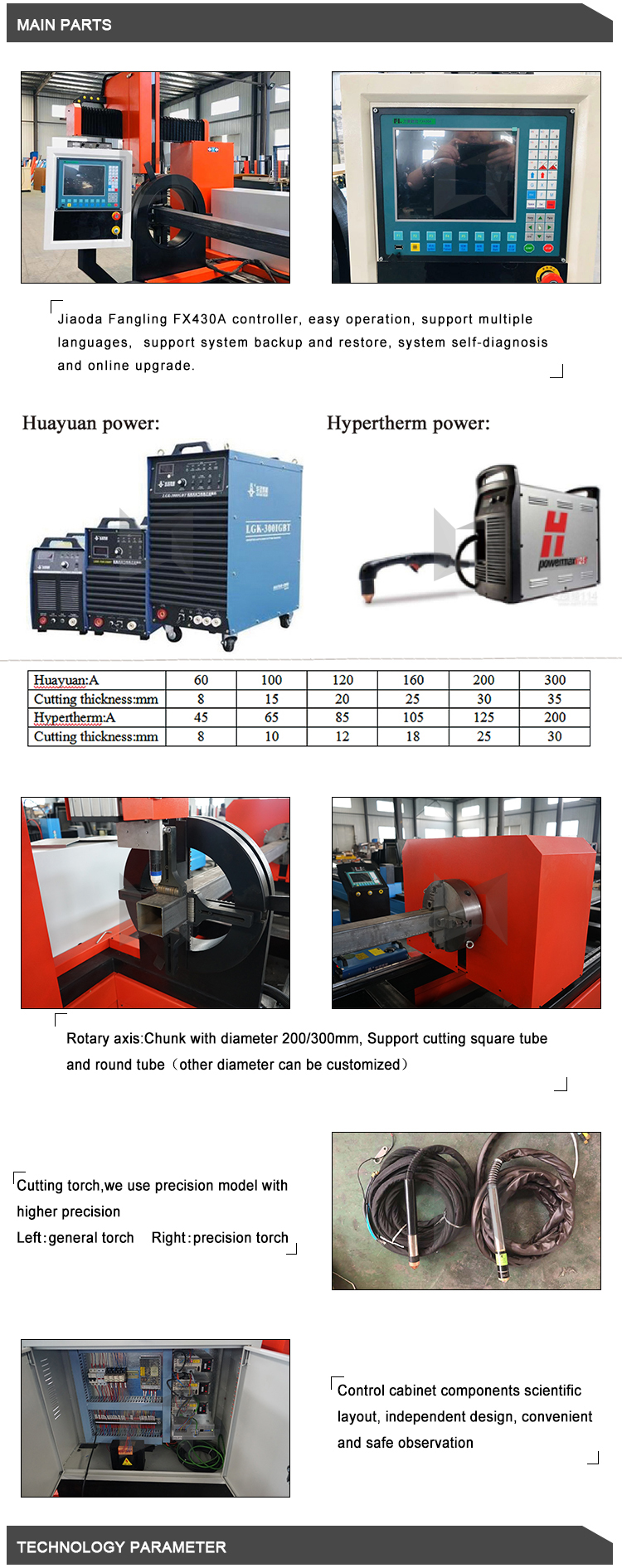

| 13 | Operating System | JiaoDa fangling FX430A controller(Professional for tube cutting) |
| 14 | Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal square tube/Circle tube |
