Application
Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board, rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.
Product Samples
Features:
1. The laser projection, grid cloth automatically to the grid to cut;
2. Unique fur garment cutting plan, ensure the fur coat complete;
3. The software intelligent layout, material utilization rate is as high as 95% +;
4. Is 4.2000 mm/s efficient cutting, manual cutting speed 4-6 times;
5. Intelligent software compensation, control the cutting accuracy of + / - 0.5 mm;
6. Implement personalization, a key cropping pattern.
Technical Parameter
| Model | LXZ1660 | LXZ1618(1325optional) | LXZA1625 (auto feeding) |
| Working area | 1600×6000mm | 1600*1800mm | 2500×1600mm |
| Machine size (mm) | 6950×2300×1250 | 2650*2300*1250 | 3600×2300×1250 |
| Rated power | 11KW | 11KW | |
| Fixed mode | flat plate table | Auto feeding type table | |

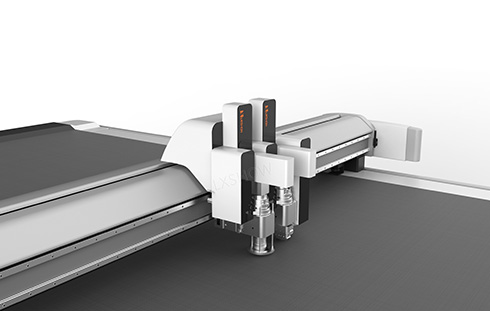

| Multifunctional head | Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. | ||
| Tool configuration | Multiple cutting knives | ||
| Safety device | Using infrared sensors, responsive, safe and reliable. | ||
| translational velocity | 800-1200mm/s | ||
| Cutting speed | 200-800mm/s(according to different cutting materials) | ||
| Cutting thickness | ≤22mm(according to different cutting materials) | ||
| Cutting materials | Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber | ||
| Repeated accuracy | ≤0.1mm | ||
| Capacity | 2GB | ||
| Transmission system | imported(Digital servo motor, linear guide, synchronous belt, ball screw) | ||
| Instruction system | HP-GL compatible format | ||
| Voltage | 380V±10% | ||
| Other configuration | Japanese Yaskawa servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump | ||
Machine Name:
1 cloth cutting cnc machine
2 cloth cutting knife cnc
3 cloth vibrating cnc cutting machine
4 cloth cutter cnc machine
