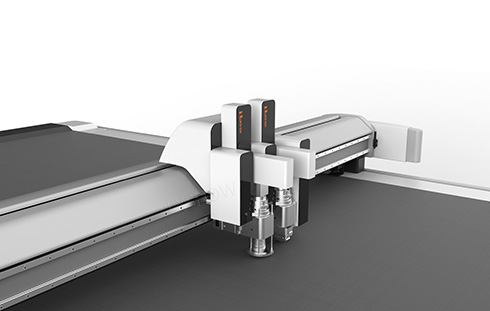

CCD Intelligent vibrating knife cnc machine


CCD Intelligent vibrating knife cnc machine


Product Application

Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.


Product Samples

CCD Intelligent vibrating knife cnc machine

Features:

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;


CCD Intelligent vibrating knife cnc machine



Technical Parameter

ModelLXZ-1625LXZ-1618(1325optional)LXZ-1625 (auto feeding)
Working area1600×2500mm1600*1800mm2500×1600mm
Machine size (mm)3450×2300×12502650*2300*12503600×2300×1250
Rated power11KW11KW
Fixed modeflat plate tableAuto feeding type table
Multifunctional headSwiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configurationMultiple cutting knives
Safety deviceUsing infrared sensors, responsive, safe and reliable.
translational velocity800-1200mm/s
Cutting speed200-800mm/s(according to different cutting materials)
Cutting thickness≤22mm(according to different cutting materials)
Cutting materialsLeather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy≤0.1mm
Capacity2GB
Transmission systemimported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction systemHP-GL compatible format
Voltage380V±10%
Other configurationJapanese Yaskawa servo motor, Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump



CCD Intelligent vibrating knife cnc machine


CCD Intelligent vibrating knife cnc machine


CCD Intelligent vibrating knife cnc machine


CCD Intelligent vibrating knife cnc machine
