sheet metal for laser cutting online fiber machine 2000W 3000W 4000W 6000W 8000W 10000W 12000W





Machine ModelLX3015F(4015/6015/4020/6020/6025/8025/12025 optional)
Power of Generator1000-20000W
Dimension4800*2600*1860mm
Working Area1500*3000mm(Other size can be customized )
Repeated Positioning Accuracy±0.02mm
Max Running Speed120m/min
Max Acceleration1.5G
Specified Voltage And Frequency380V 50/60HZ


1 Brand New Cast Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

   sheet metal for laser cutting online fiber machine 2000W 3000W 4000W 6000W 8000W 10000W 12000W


The Segmented Rectangle laser Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of metal plate. Stiffeners are arranged inside the plates to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed

sheet metal for laser cutting online fiber machine 2000W 3000W 4000W 6000W 8000W 10000W 12000W


3  Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:

Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:

Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

sheet metal for laser cutting online fiber machine 2000W 3000W 4000W 6000W 8000W 10000W 12000W


4  Independent Control Cabinet

Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.


sheet metal for laser cutting online fiber machine 2000W 3000W 4000W 6000W 8000W 10000W 12000W

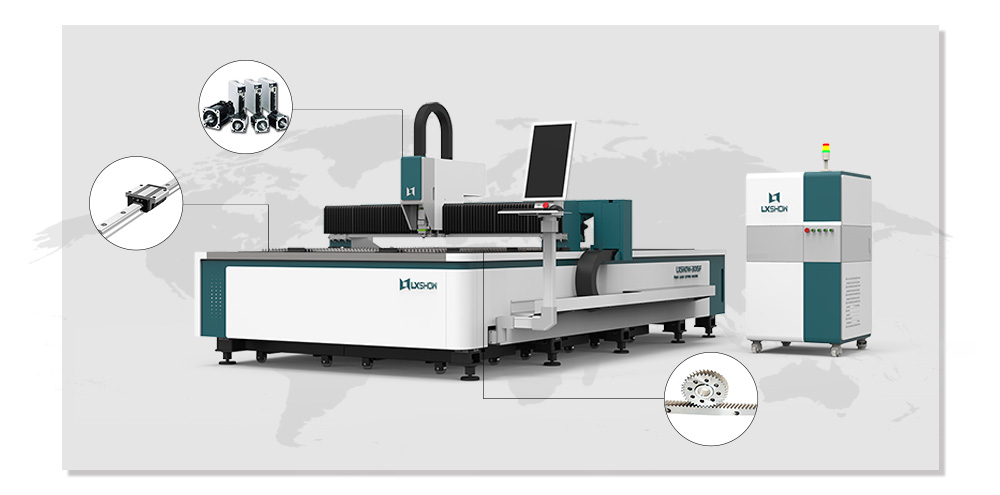

5 Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
