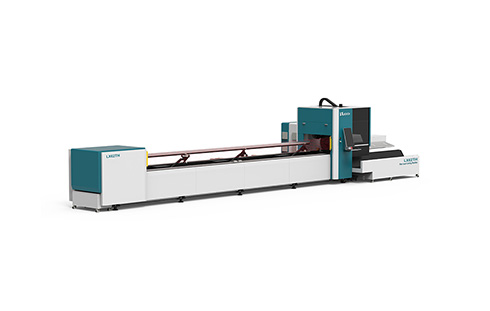

[LX62TH]Round Square tube metal stainless steel carbon steel iron pipe fiber laser tube cutting machine 1000W 2000W 3000W 4000W 6000W

Share

Round Square tube metal stainless steel carbon steel iron pipe fiber laser tube cutting machine 1000W 2000W 3000W 4000W 6000W

Round Square tube metal stainless steel carbon steel iron pipe fiber laser tube cutting machine 1000W 2000W 3000W 4000W 6000W




Machine ModelLX62TH
Power of Generator1000-6000W
Dimension2021*11230*2132mm
Clamping RangeΦ20-Φ220mm(300/350 mm can be customized)
Repeated Positioning Accuracy±0.02mm
Specified Voltage And Frequency380V 50/60HZ




1.Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers

2.Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking

3.The front end of the machine is surrounded by design to improve the dust removal effect

[LX62TH]Round Square tube metal stainless steel carbon steel iron pipe fiber laser tube cutting machine 1000W 2000W 3000W 4000W 6000W

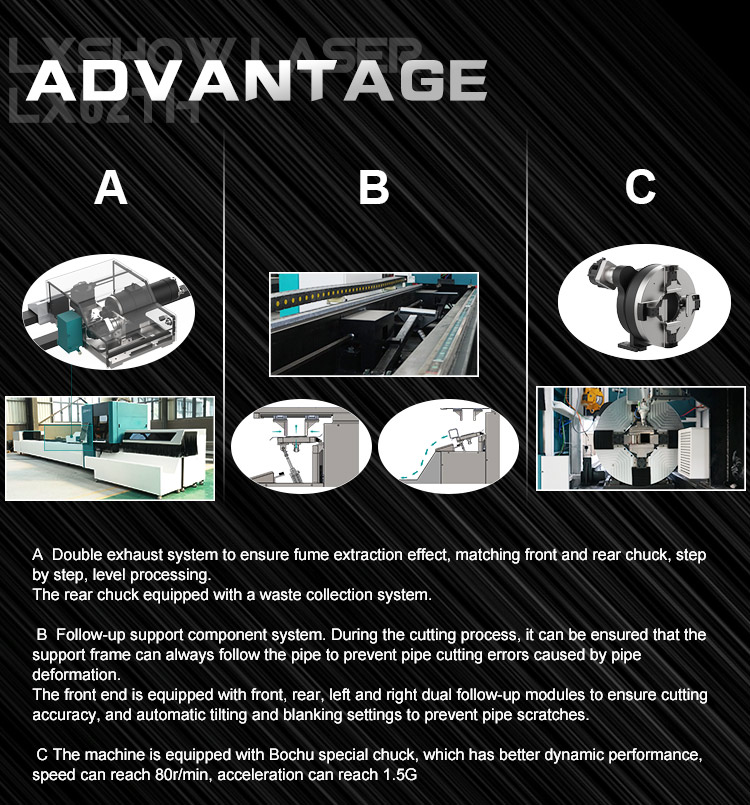

A  Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing.

The rear chuck equipped with a waste collection system.



B  Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation.

The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.

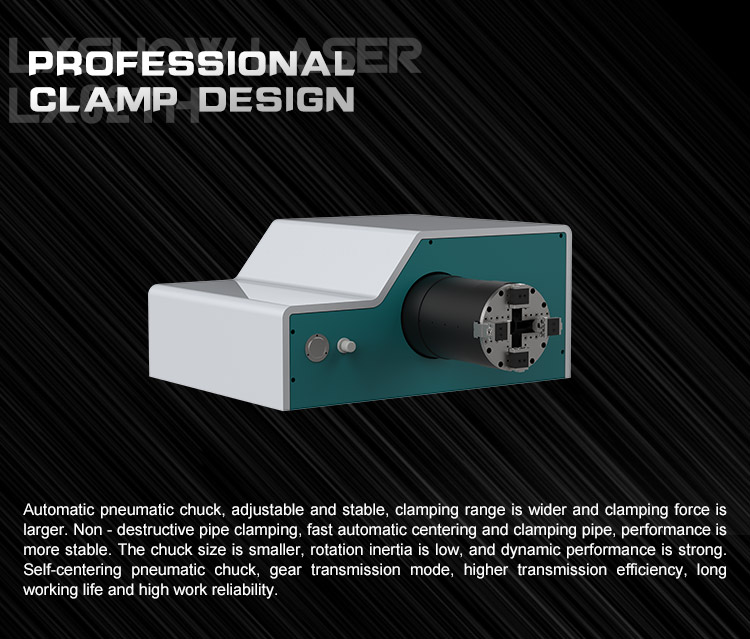

C The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G
