Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Application Materials:

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc


Application Industries:

Soullon Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.


1Machine Name1500W 2200W 3300W High Power Metal Plate + Metal tube/pipe Fiber Laser cutting   machine LXF3015R
2ModelLXF3015R
3Laser machine cutting area3000x1500mm(Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
4Tube Cutting RangeTube diameter range:20-200mmTube length:6000mm(Other size can be customized,detailed confirmed with sales)
5Fiber Laser PowerCO2 Laser Power500w/750w/1000/1500/2200/3300/4000/6000/8000/12000/25000W
6Laser wave length1064nm
7Transmission systemGear   + rails(we   have standard brand,we can also produce as your requirements)
8X.Y axis location accuracy±0.01mm
9X.Y axis repeat location accuracy±0.01mm
10X.Y axis max moving speed30m/min
11Max cutting speed1--30m/min(it will according to metal material and laser power   and machine configuration)
12Cutting thicknessDetailed in the following cutting thickness
13Application MaterialMetal sheetIron/CS/SS/Aluminum/Copper and all kinds metal
14Advantages>Excellent beam quality
  >Simple , compact, electrically and optically efficient
  >Compatibly powerful and reliable
  >Maintenance free
  >multilingual, more than 11 foreign languages
  >3 years warranty .
15Gross weight6500KG(About)
16Net weight6250KG(About)
17Machine size

Rotary size:8000*1600*1150mmMachine size(without rotary):

4160*2200*1980mmDetailed machine size will be according to detailed   configuration.this size for your reference.

18Transport40 container + 20 container

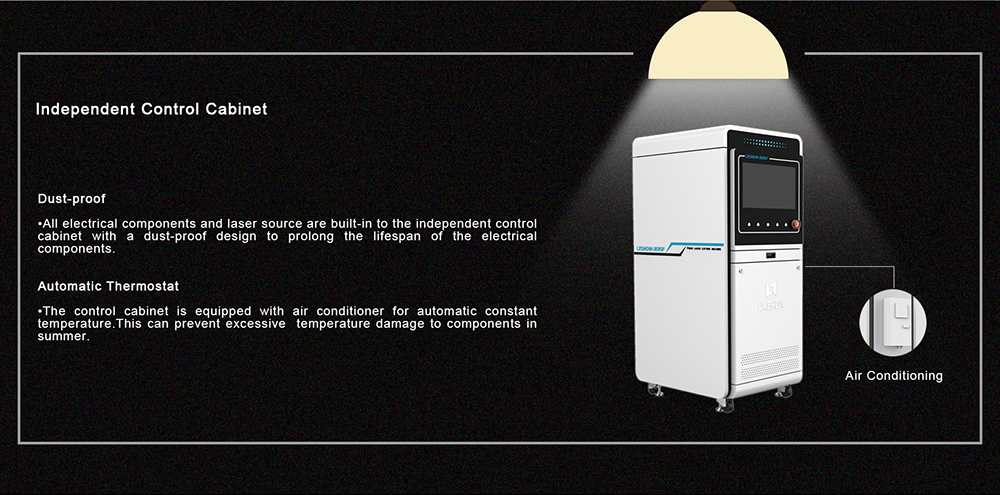

 Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

Metal Plate   Round/Square tube Fiber laser cutting machine LXF1530R

MaterialThickness(mm)500W1000W1500W2000W3000W4000W6000W8000W10000W12000W
Cutting   Speed(m/min)
Carbon Steel(O2)17.0~8.07.0~9.07.0~11.07.0~12.07.0~12.07.0~12.07.0~12.07.0~12.07.0~12.07.0~12.0
24.0~5.05.0~6.05.0~6.55.0~6.55.0~7.05.0~7.05.0~7.05.0~7.05.0~7.05.0~7.0
32.0~2.52.5~3.02.8~3.83.0~4.63.5~5.03.5~5.03.5~5.03.5~5.03.5~5.03.5~5.0
41.5~2.02.0~2.42.5~3.22.8~4.03.0~4.23.0~4.23.0~4.23.0~4.23.0~4.23.0~4.2
51.2~1.51.5~1.81.8~2.52.2~3.22.5~3.62.5~3.62.5~3.62.5~3.62.5~3.62.5~3.6
61.0~1.41.4~1.61.6~2.22.0~2.82.4~3.02.4~3.02.4~3.02.4~3.02.4~3.02.4~3.0
8
1.0~1.21.1~1.51.4~2.01.8~2.41.8~2.41.8~2.41.8~2.41.8~2.41.8~2.4
10
0.75~0.851.0~1.21.1~1.41.2~1.81.2~1.81.2~1.81.2~1.81.2~1.81.2~1.8
12
0.6~0.70.9~1.00.9~1.21.0~1.51.0~1.51.0~1.51.0~1.51.0~1.51.0~1.5
16


0.6~0.750.7~0.850.7~0.850.7~0.850.7~0.850.7~0.850.7~0.85
20



0.6~0.750.6~0.750.6~0.750.6~0.750.6~0.750.6~0.75
22



0.5~0.650.5~0.650.5~0.650.5~0.650.5~0.650.5~0.65
25



0.4~0.60.4~0.60.4~0.60.4~0.60.4~0.60.4~0.6



MaterialThickness(mm)500W1000W1500W2000W3000W4000W6000W8000W10000W12000W
Cutting   Speed(m/min)
Stainless Steel(N2)110~1215~1810~1535~5045~5545~5545~5545~5545~5545~55
22~4.04.5~6.05.0~7.010~1515~2318~2720~3523~3726~4028~43
30.7~2.02.0~2.43.0~4.05.0~7.07.0~11.010~1515~2019~2423~2827~32
4
1.0~1.52.0~2.83.5~4.54.0~6.05.0~7.510~1414~1718~2222~26
5
0.75~0.851.2~1.71.8~2.52.5~4.04.0~5.08.0~12.011~1414~1716~18
6

0.7~1.00.7~0.82.0~3.23.0~4.06.0~8.08.0~9.59.5~11.010.5~12.0
8

0.5~0.70.5~0.61.2~1.81.5~2.63.5~4.05.0~5.56.5~7.07.5~8.0
10



0.7~0.90.7~1.31.8~2.22.5~3.03.4~3.94.0~4.5
12



0.3~0.40.4~0.61.2~1.51.8~2.12.6~3.13.3~3.6
16




0.3~0.50.8~1.21.5~1.82.2~2.52.7~3.0
20




0.3~0.50.6~0.81.0~1.31.7~2.02.2~2.5
22





0.3~0.40.6~0.751.0~1.21.4~1.6
25






0.3~0.50.4~0.60.6~0.8



MaterialThickness(mm)500W1000W1500W2000W3000W4000W6000W8000W10000W12000W
Cutting   Speed(m/min)
Aluminum (N2)1

10~1530~4530~3835~4045~5545~5545~5545~55
2

5.0~6.010~1512~1613~2220~3027~3533~4036~43
3

2.5~3.55.0~7.06.5~8.07.0~1313~1815~1818~2223~26
4

1.4~2.03.5~5.03.5~5.04.0~5.510~1212~13.515~1819~22
5

0.8~1.02.0~3.02.5~3.53.4~4.05.0~8.09.0~1214~1617~19
6

0.5~0.61.5~2.01.8~3.02.2~3.54.0~6.07.5~9.510~12.513~15
8


0.5~0.60.9~1.30.9~1.62.0~3.04.0~4.85.8~6.56.8~7.2
10



0.4~0.70.55~1.01.0~1.91.5~2.73.0~3.83.7~4.2
12



0.3~0.450.4~0.60.8~1.41.6~1.92.4~2.73.3~3.6
16




0.3~0.40.6~0.91.0~1.21.4~1.61.7~1.8
20





0.4~0.60.8~0.91.0~1.21.2~1.6
22






0.7~0.850.9~1.01.1~1.2
25






0.35~0.450.6~0.70.8~0.9



MaterialThickness(mm)500W1000W1500W2000W3000W4000W6000W8000W10000W12000W
Cutting   Speed(m/min)
Brass (N2)1

8.0~1212~1820~3225~3045~5545~5545~5545~55
2

3.5~5.06.0~8.59.0~1110~1325~3527~3533~4036~43
3

1.5~2.22.5~4.04.0~6.05.0~6.512~1815~1818~2223~26
4

1.0~1.21.5~1.83.0~4.53.0~5.28.0~1012~13.515~1819~22
5

0.6~0.80.8~1.21.5~2.02.0~3.04.5~6.09.0~1214~1617~19
6


0.4~0.51.0~1.61.4~2.03.0~4.07.5~9.510~12.513~15
8



0.5~0.60.7~0.81.6~2.24.0~4.85.8~6.56.8~7.2
10




0.2~0.30.8~1.21.5~2.73.0~3.83.7~4.2
12






1.6~1.92.4~2.73.3~3.6
