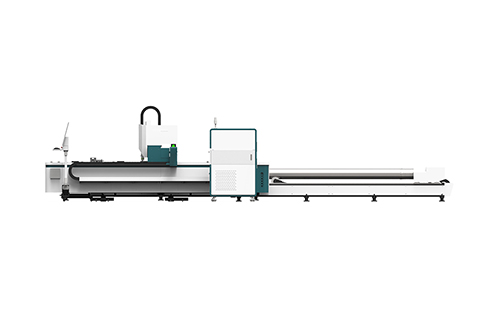

[LX3015CT]1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015CT

Share

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C

Machine ModelLX1530CT(2513/4015/4020 optional)
Power of Generator1000-2000W
Dimension4570*8450*1990mm(About)
Working Area1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy±0.02mm
Max Running Speed120m/min
Max Acceleration1.5G
Specified Voltage And Frequency380V 50/60HZ


1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Steel Plate Weld Machine Frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;

Effect force annealing treatment, high mechanical strength, not easy to deform;

Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;

The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Rotary Length:6m standard,8m and other size can be customized.



Rotary Diameter:160/220mm is standard. Other size can be customized.



Chuck:Both pneumatic control

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Pneumatic Chuck Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Suitable Power:1000-3000w(4000w optional)

Brand:IPG/Raycus/MAX/JPT/Nlight

 1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.


High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

1000w 1500w 2000w Cnc fiber laser cut for metal plate and tube LX3015C


Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.



Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.
