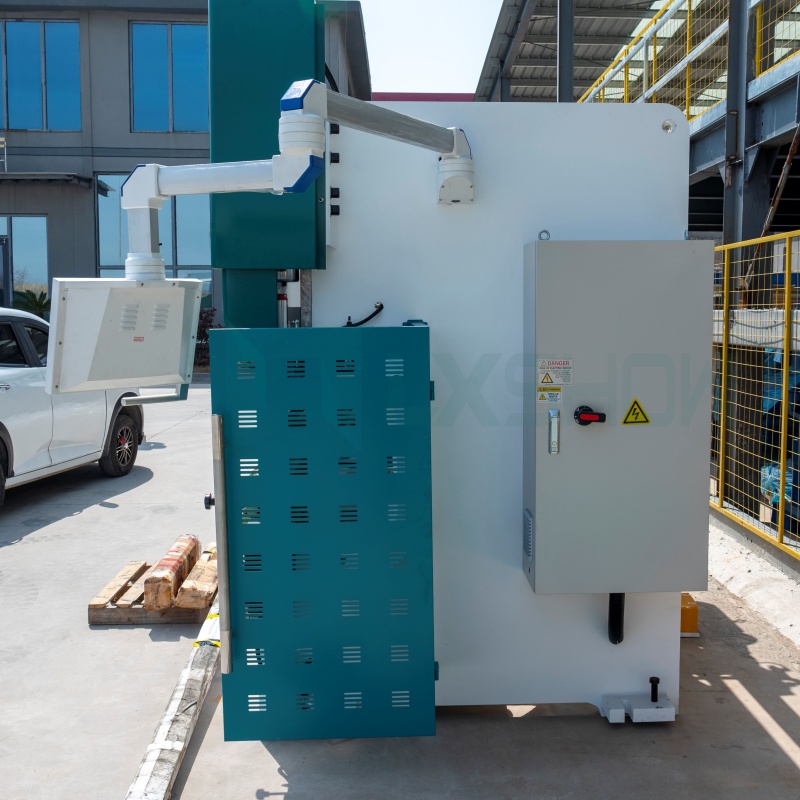

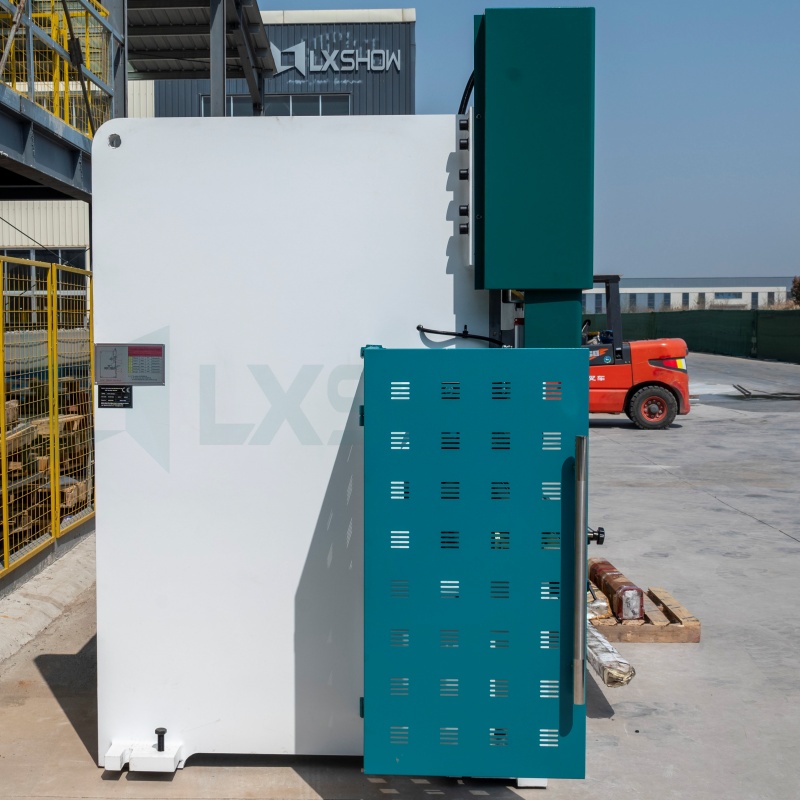

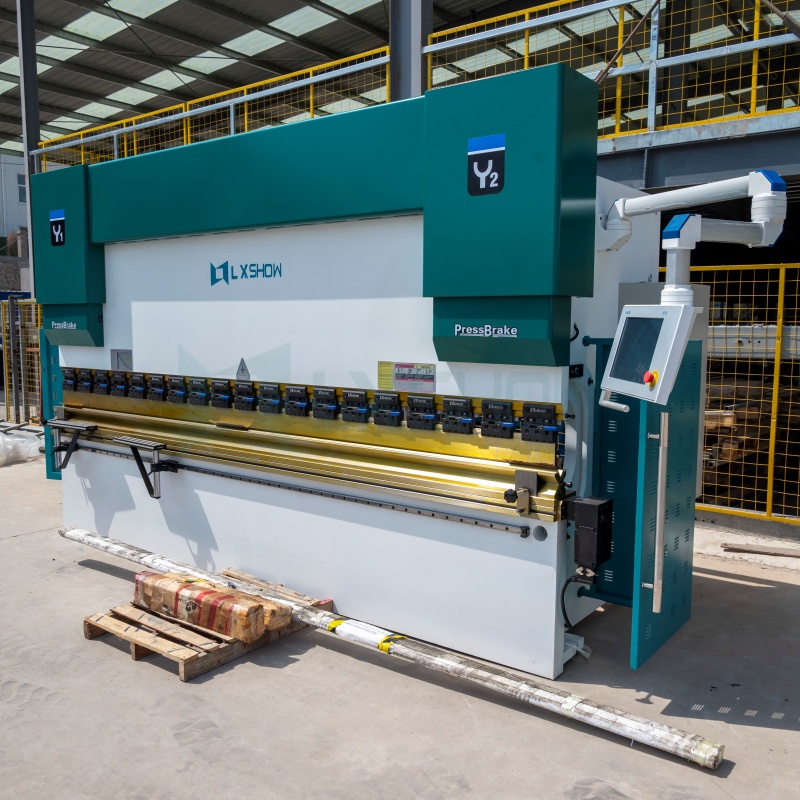

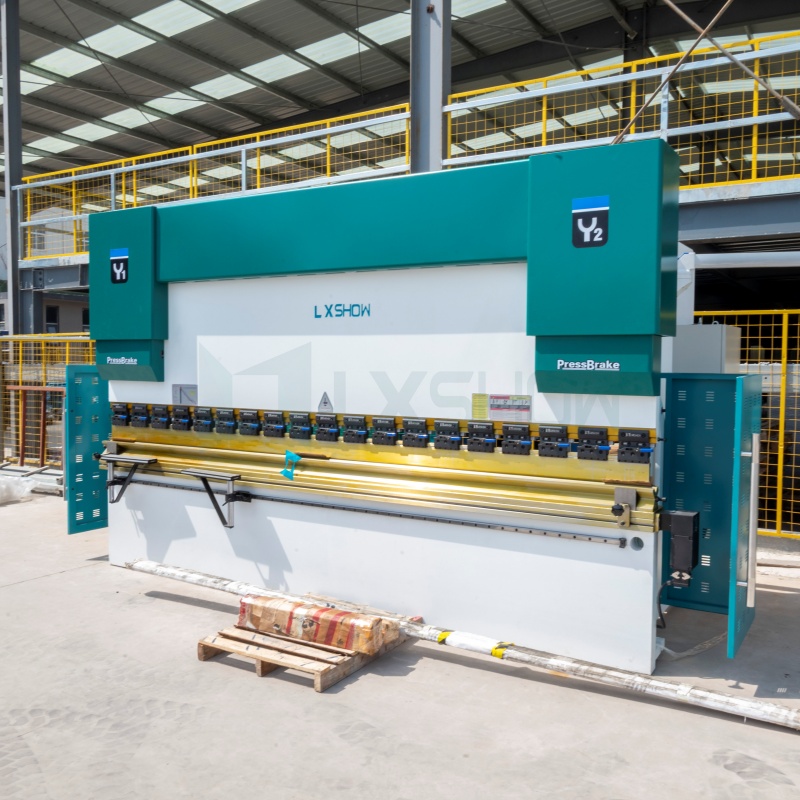

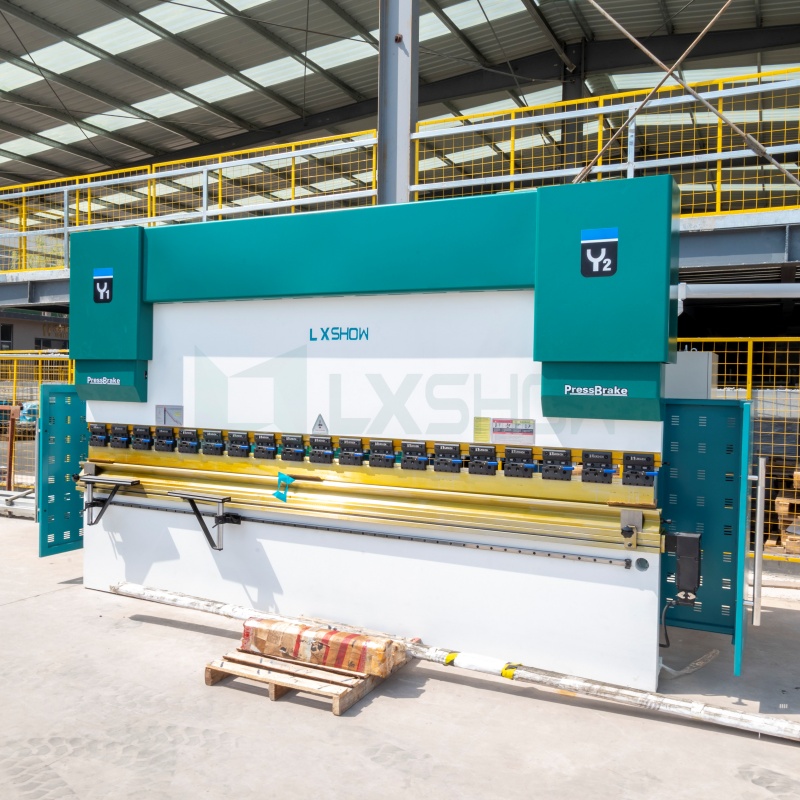

WE67K-160T4000 Good Performance Sheet Metal Electrical Hydraulic Press Brakes

 CNC bending machine standard configurationFeatures

• Complete steel-welded structure, with sufficient strength and rigidity;

• Hydraulic down-stroke structure, reliable and smooth;

• Mechanical stop unit, synchronous torque, and high precision;

• •The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;

• Upper tool with tension compensating mechanism, In order to guarantee high precision of bending;

• TP10S NC system;

 Control System

•  The new compact adds a state-of-the-art completetouch control solution for synchronized press brakes

•  This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets asiwell as usedin an optional pendulant arm housing

•  Machine adjustment and test bends are reduced to aminimum with a quick and easy program-to-productionwork sequence.

   Upper Tool Fast Clamp

• Upper tool clamping device is fast clamp

   Multi-V Bottom Die Clamping(option)

• Multi-V bottom die with different openings

   Backgauge

• Ball screw/liner guide are high precision

 Front Support

• Aluminium alloy material platform ,attractive appearance,

          And decrease scratch of workpicec.

CNC bending machine optional partsCrowning Compensation for Worktable

• A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.

• The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.

 Quick Change Bottomm Die

• Adopt 2-v quick change clamping for bottom die

Lasersafe Safety Guard

• Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module

• Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers；three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.

Mechanical Servo Bending Help

• When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.

• Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning

• Support platform can be brush or stainless steel tube ,according to workpiece size,two supports linkage movement or seperate movement can be chosed.

Performance features

• Slider adopts torsion shaft synchronous mechanism ,also install high-precision taper centering bearings (“K”model) at both ends of torsion shaft and install eccentric adjustment mechanism at the left end in order to  make slider synchronous adjustment convenient and reliable.

• Adopts Upper tool with tension compensating mechanism,upper tool port obtains a specific curves over the full length of the machine and deflection of worktable and slider improve bending accuracy of the tools when crowning through adjustment .

• During the angle adjustment,the servo worm drives the movement of the mechanical stop in the cylinder,and the cylinder position value is displayed by the stroke counter.

• The fixed place of the worktable and wallboard is equipped with an upper and lower adjustment mechanism ,which makes the adjustment convenient and reliable when the bending angle is slightly different.

• The right side of the column is equipped with a remote pressure regulator, which makes the system pressure adjustment, convenient and reliable.

 Main Technical Parameters

Samples

Packaging

Factory

Our Service

Customer Visit

Off-line Activity

FAQQ: Do you have CE document and other documents for customs clearance?

A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?

A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you.
