| Bending radius range | 50-300 |
| Bending angle range | 0-190 |
| Maximum feeding distance approx. | 3000 |
| Shortest clamping distance | Pipe outer diameter*2 times |
| Pipe bending method | Hydraulic pipe bending |
| Bending speed | 10°(Adjustable speed) |
| Feeding method | Direct or pinch feeding |
| Feeding servo motor power | 3 |
| Angle servo motor power | 1.5 |
| Oil pump motor power | 11kw |
| Hydraulic system pressure | ≤16 |
| Machine gross weight approx. | 2500 |
| Machinedimensions approx. | 5200*1200*1600 |
1) using the latest Taiwan-based touch screen, bilingual (Chinese/English) display of all machine functions, information and programming.
2) the display of the machine on the view sketch, just touch the relevant graphic square button to operate the specified machine functions.
3) Multiple modes for automatic or manual operation.
4) Built-in self-detection and inspection system and report function, displaying the abnormal or error message, and indicating the disposal method, but also record the recent flood message, in order to facilitate the maintenance of reference E. User-friendly touch screen, so that the operation of simple and easy to set up the programme, can be quickly change the mould device, in order to minimize the time to use the machine setup. F. Can be set to each axis of the working speed in order to save time to increase the output. There is a counting function to calculate the number of work.
5)Bending function to make large pipe diameter or small bending radius can also have a perfect ellipse, can also set parameters to compensate for bending bounce value.
6) by the programme planning built-in battery can be kept after cutting off the power supply storage for 6 months, data and programmes are also protected by passwords and keys.
7) specially equipped with servo motor fixed length, servo motor control automatic corner, can bend multi-angle three-dimensional pipe.
8) Multi-layer protection devices to ensure operator safety, can be manually operated, or semi-automatic operation. Automatic sensor detection and error indication to avoid machine or mould damage due to man-made. k. Perfectly designed and refined head with strong structure, providing the maximum bending space to reduce any interference factors occur. l. A variety of other special equipment for customers to choose from, so that the product is more perfect.
Main Parts

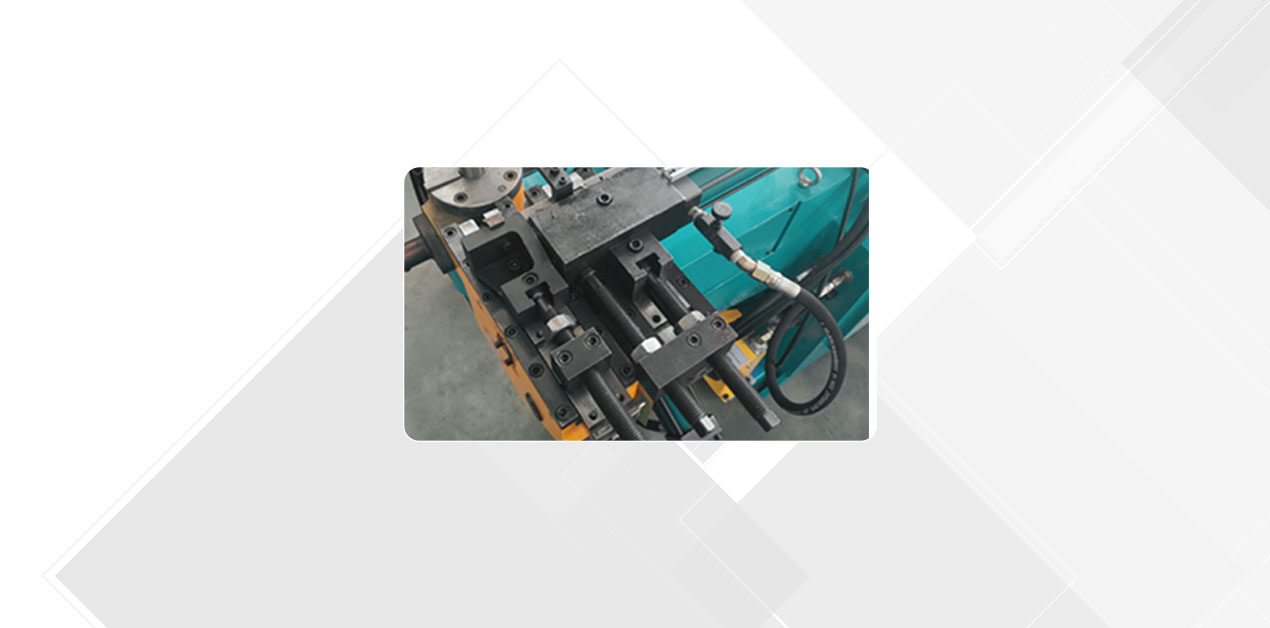

Clamping mechanism
The clamping mechanism of the pipe bending machine is a key component used to fix the pipe and ensure that the pipe will not move or rotate during the bending process.

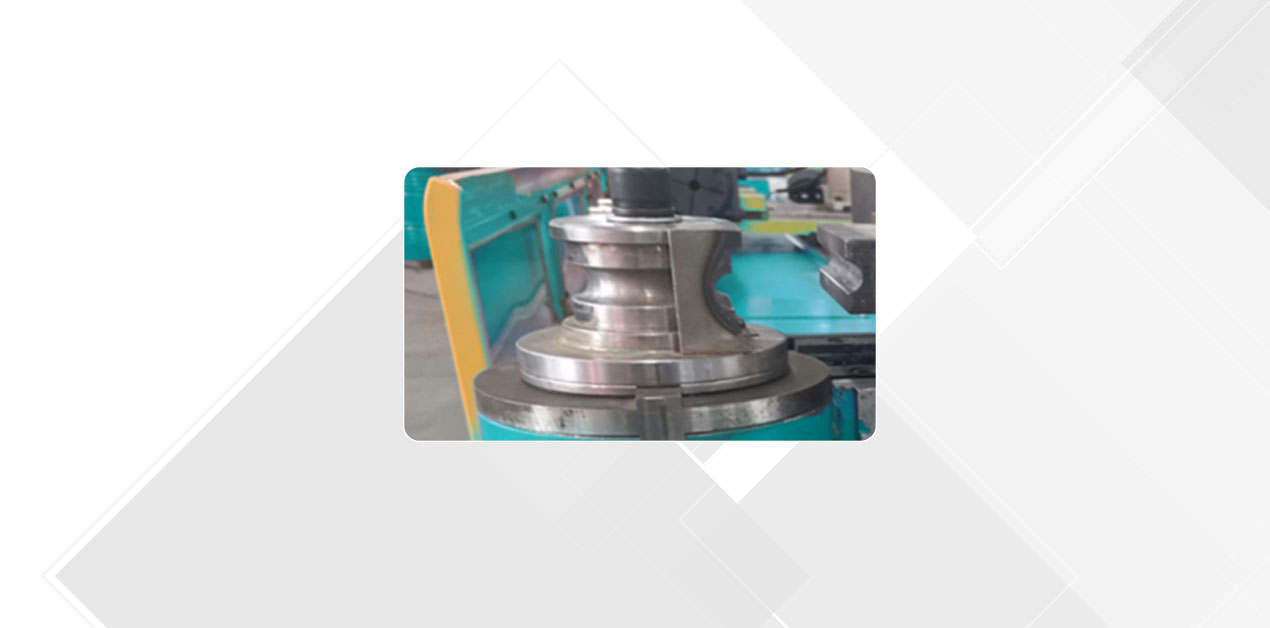

Mould
The mold of the pipe bending machine is aspecial tool used to define the bending shape and size of the pipe. lt controls the bending radius and angle by designing the contactsurface with the pipe to ensure that the bent pipe meets the predetermined specifications.

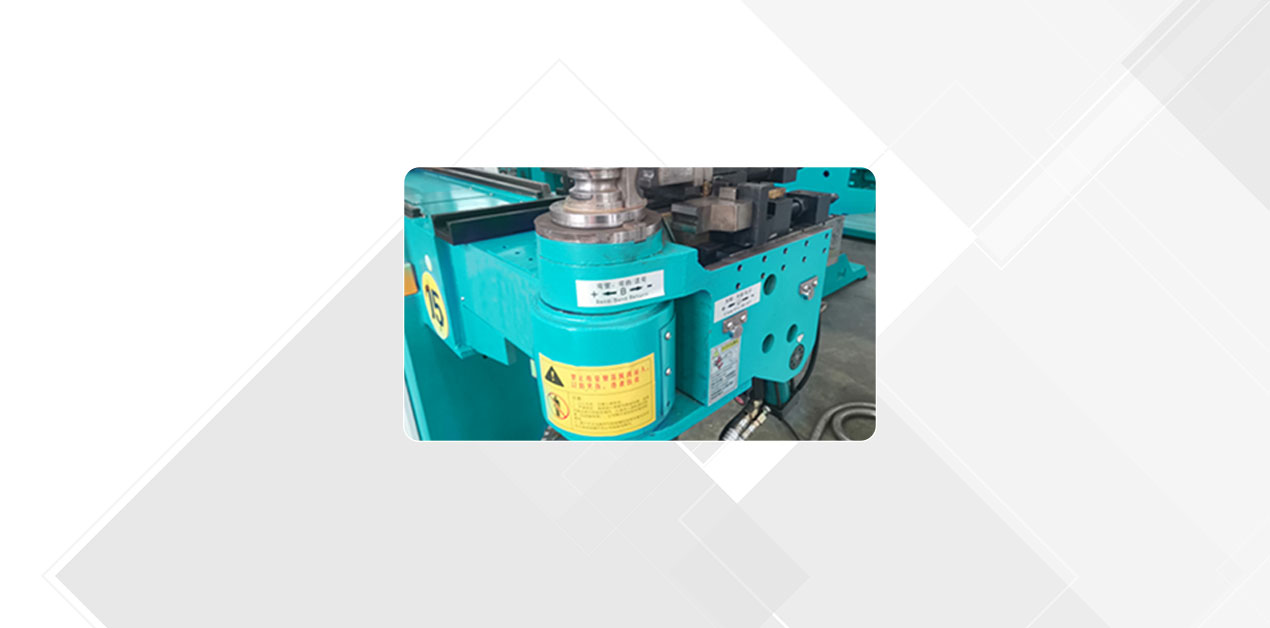

Oil cylinder
The oil cylinder of the pipe bending machine is the key actuator in the hydraulic system. ltis driven by the high-pressure oil output by the electric oil pump to generate thrust thereby achieving the bending of the pipe.

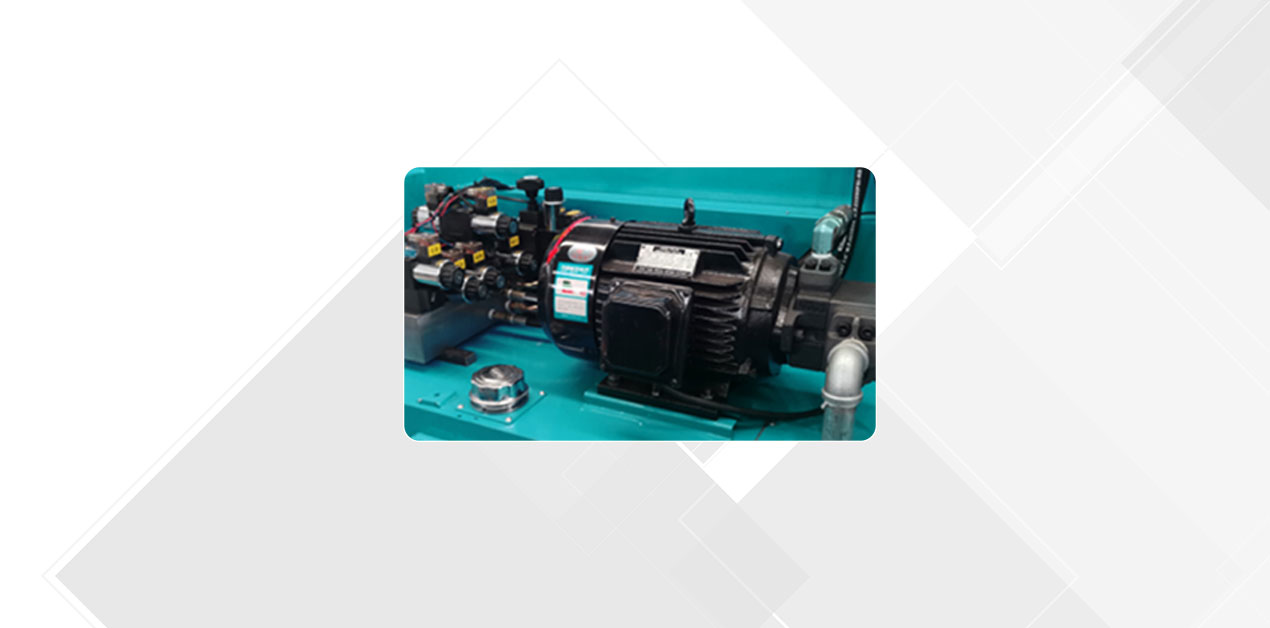

Oil pump motor
The oil pump motor of the pipe bending machine is the core component that providespower to the hydraulic system.lt is responsible for driving the oil pump andconverting mechanical energy into hydraulic energy to achieve precise bending of the pipe.

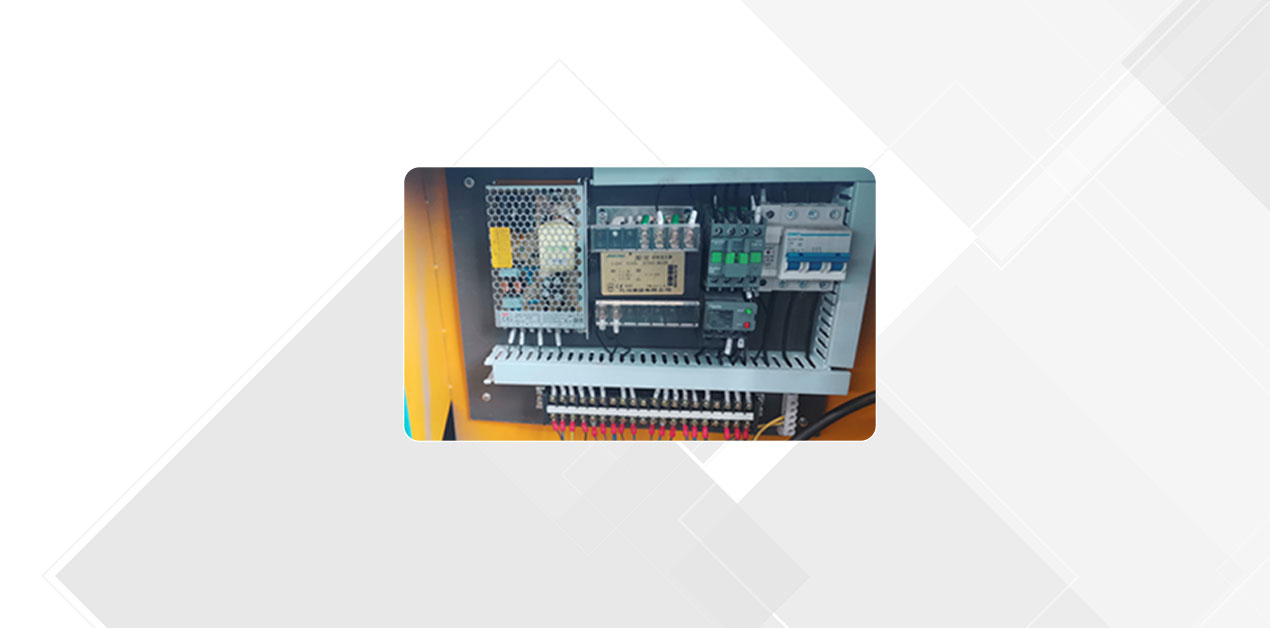

Power distribution cabinet
The power distribution cabinet of the pipe bending machine is the core component used to control and manage the electrical system of the pipe bending machine.It contains various electrical components and
protection devices to ensure the safe and stable operation of the machine.
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.
Q: I don't know which one is suitable for me ?
A :Just tell us below information
1) Outer diameter of the tube
2) Wall thickness of the tube
3) Material of the tube
4) Bending radius
5) Bending angle of the product
