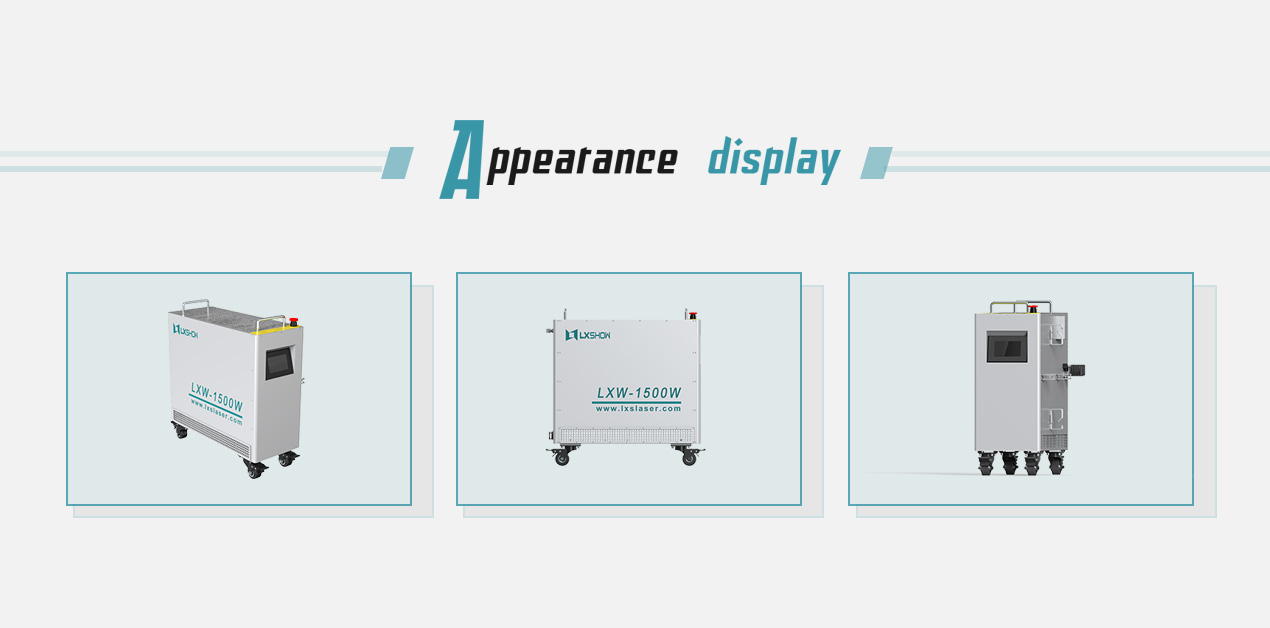

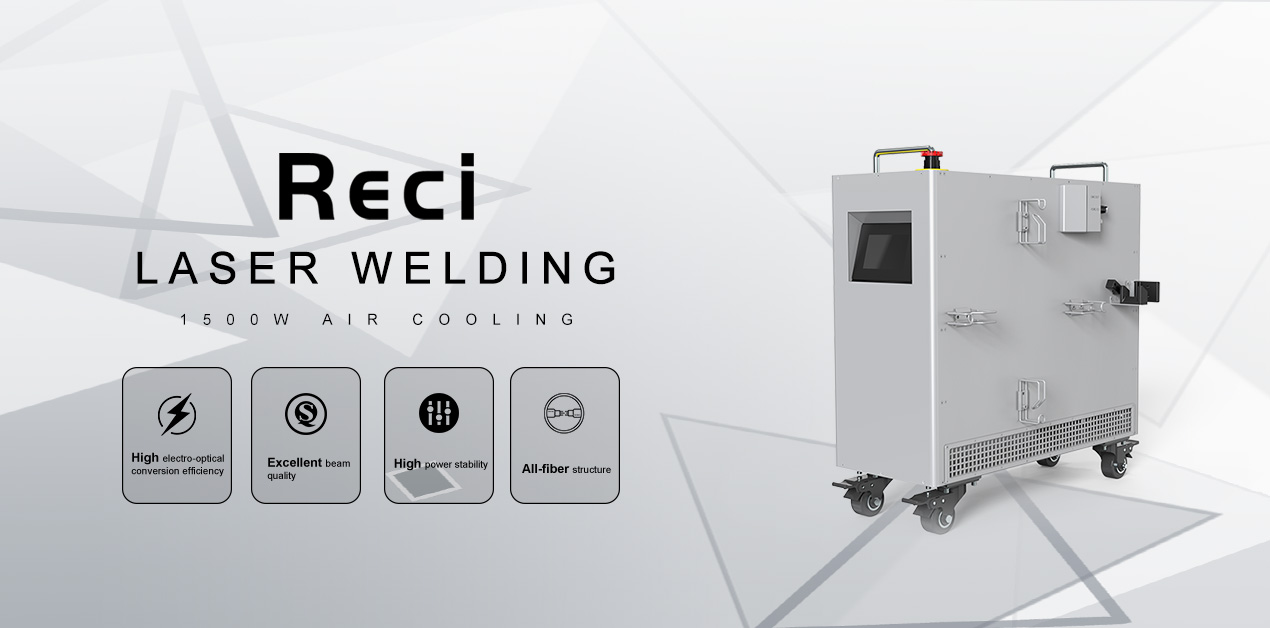

Model | LXW |
Laser source | Reci |
Working life of fiber module | More than 100,000 hours |
Laser machine controller | Reci |

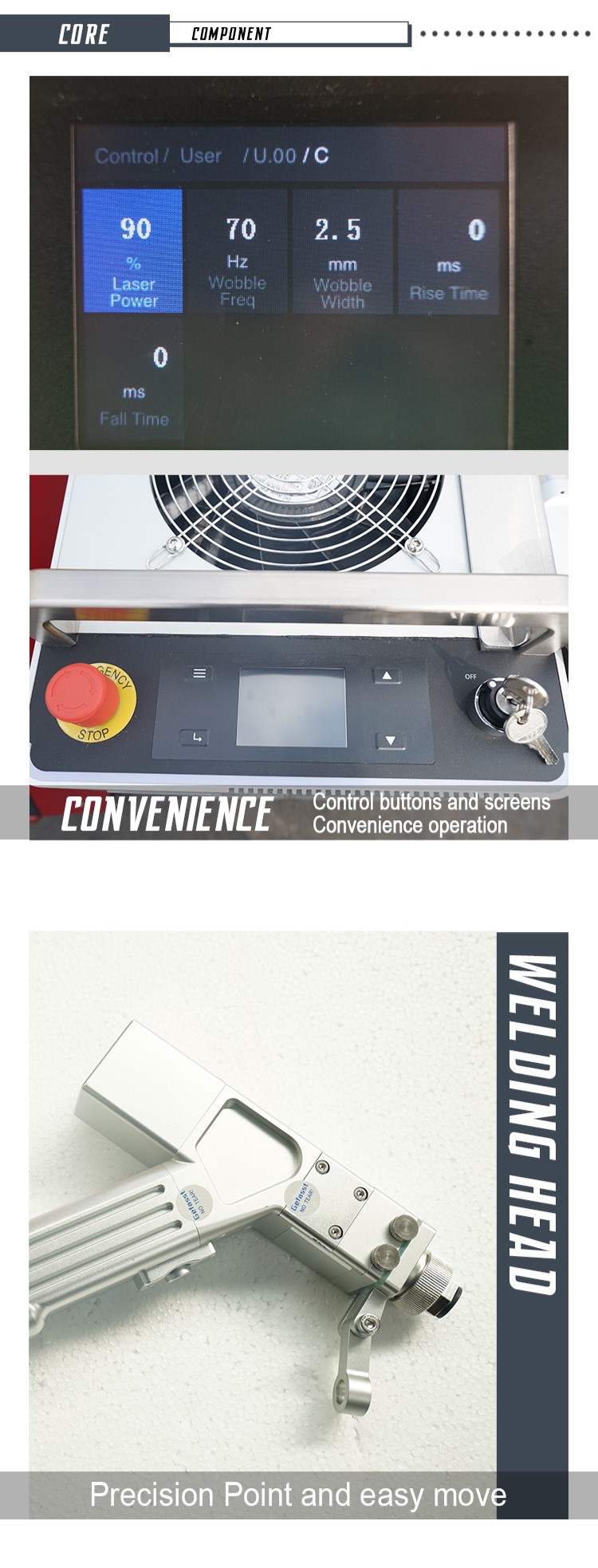

Wobble welding head | Single wobble |
Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
Machine power consumption | 11.5Kw(including chiller) |
Setting up the environment | Flat, no vibration, no impact |
Working temperature | 0°C～40°C |
Working environment humidity | ≤80% |
Power adjustment range (%) | 10-100 (gradient adjustable) |
Laser Source Repeat frequency (KHz) | 1000-5000 (gradient adjustable) |
Beam quality | 1.3m2 |
Laser wavelength | 1070nm |
Focal length (mm) | 150 |
Cooling method | Air cooling |
Size | 800x750x900mm |
Weight | 65kg |
Fiber length | 10 meters |
Welding head weight | 1.5Kg |
Scanning/Swing frequency | 20-150Hz |
Mobile mode | Handheld |
Auxiliary gas | 99.99% argon or nitrogen |
Auto wire feeder | Included |
Spot adjusting range | 0-5mm |
Repeating Precision | 0.01mm |
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.Single-wire welding is recommended for materials less than 2mm thick. If the weld seam is wider than 2mm and the welding height is better, double-wire welding is recommended. 3000 power double-wire is recommended for ≥5 thickness.
