big size laser marking machine

Share

big size laser marking machine




Application:

1). Materials:

Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2). Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.


Marking Sample

four station laser marking machine


Characture:

1). Long lifetime, over 100,000 hours.

2). Compact laser source with air cooling.

3). 2 to 5 times more productive a traditional laser marker or laser engraver.

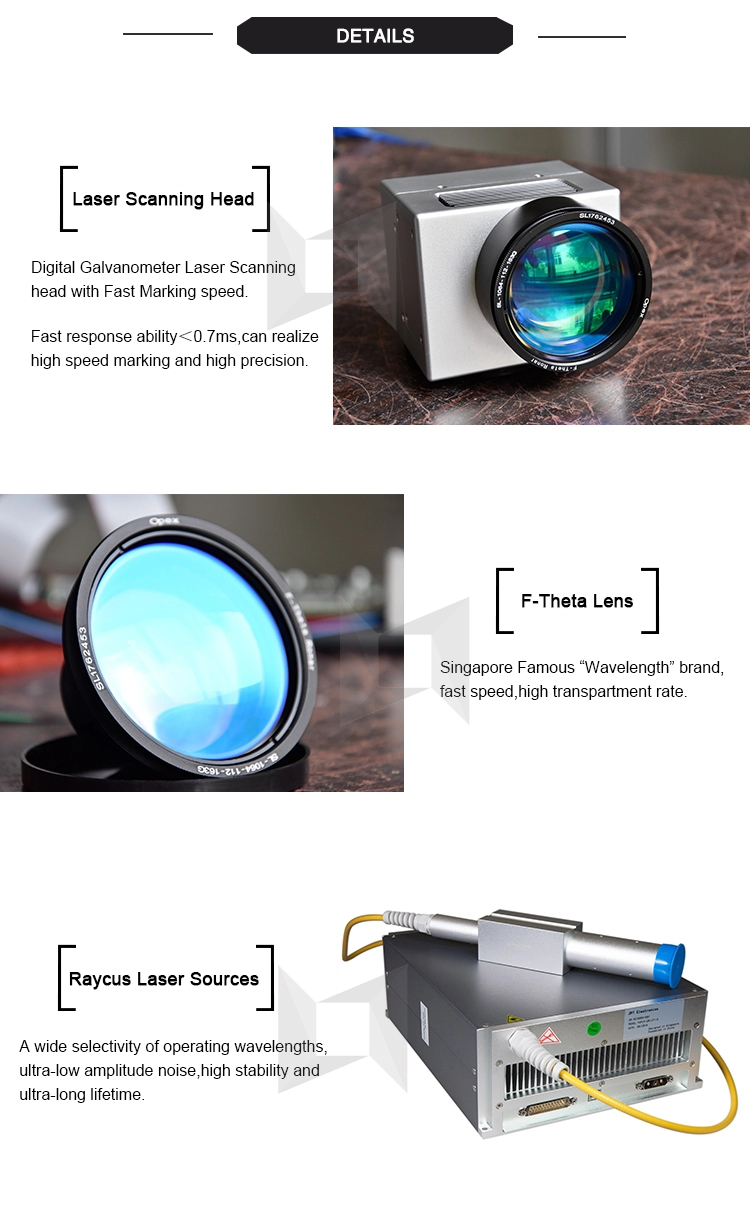

4). Super quality galvanometer scanning system.

5). High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.

6). More stable performance.

7). Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.

8). Output power is stable, optical mode is good, beam quality is excellent.

9). Marking speed is fast, efficient, and high accuracy.

10). Appearance is professional, operation is easy.



four station laser marking machine

Optional Parts


four station laser marking machine

Technical Parameter


Item / ModelLXF-20/30/50/60/70/100/120W
Laser sourceDomestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)
Laser power20w, 30w, 50w,60w ,70w,100,120w
Laser typeFiber laser
Graphic Format SupportedDXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,
Marking speed≤8000mm/S
Max.Marking Depth≤0.4mm
Laser Wavelength1064nm
Marking lines0.06-0.1mm
Minimum line width0.06mm
Minimum character0.15mm
Resolution ratio0.01mm
Graphic format supportedBMP, PLT, DST, DXF, AI
Software supportedTAJIMA, CorelDraw, Photoshop, AutoCAD
Equipment Dimensions920*830*1160mm(different model has different size,detailed can be confirmed with sellers)
Net Weight:

150kg(different configuration has small difference)

Unit Power≤500W
Optional Spare PartsRotary/Protection glasses/outside red light/night light and other optional customized parts and so on.








Machine Name:

1.big size laser marking machine

2.big size fiber laser marking machine

3.big work area laser marking machine

4.big work area fiber laser marking machine

5.big work size laser marking machine

6.big work size fiber laser marking machine
